Tableau Tip Tuesday: Showing an Axis Above a Chart
A very common question and feature request I see on the Tableau Forums is to show the axis above a chart rather than below, as Tableau does by default.
When I was working on solving this, I started by looking at the XML for a workbook and there is a bit of code that controls whether an axis displays. I built a dual-axis chart to see if I could change the display in the code.
In the <style> section, note the value=‘false’ setting. This is what is hiding the axis. I changed only the top axis by setting it to ‘true', but when I opened the workbook again, both axes were displayed. Back to the drawing board I went.
Here are the steps to follow to display the axis above the bar chart and not below (sort of):
Step 1: Create a bar chart.
Step 2: Duplicate the measure that is shown in the chart by right-clicking on the measure in the Measures list and choosing Duplicate.
Step 3: Drag the duplicated measure onto the secondary axis.

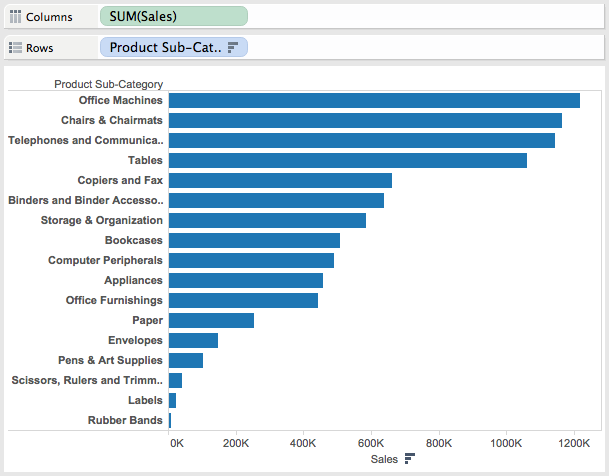

You should now have a chart that looks like this:
Step 4: Change the mark type for both measures to Bar.
Step 5: Remove the Measure Names field from the Color shelf. This isn’t required, but you really don’t need to have two colors for the same measure.
Step 6: Right-click on the bottom axis and choose Format. Change the Font to white and set the Ticks to ‘None’. This doesn’t hide the axis (hence the reason I said ’sort of’ above), but it will give the appearance that the axis isn’t there.
Step 7: Double click on each of the axes and remove the titles. This isn’t required, but it makes the axis narrower.
That’s it! While this isn’t a perfect solution, it works. Also, be sure to clean up the tooltips since they will show the measure twice.
You can download the workbook used to create this viz here.
